Mobile Home 08 – Three bedroom

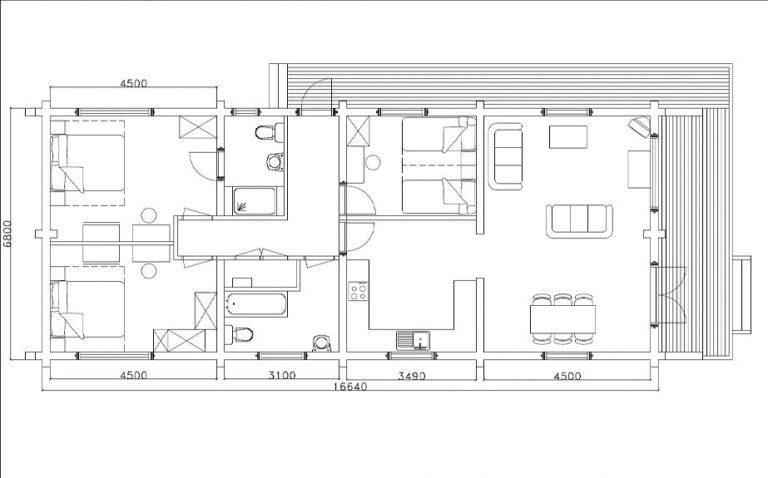

Mobile Home 6.80m x 16.64m (without terrace/decking)

Construction details

  • 70mm thick solid timber wall
  • 100mm void for 80mm celotex insulation
  • 19mm internal T&G timber cladding
  • Internal separating walls 70mm
  • Sidewall height 2200mm
  • Ridge height 3000mm – about 13 degrees
  • Eaves lateral and back 300mm
  • Front canopy 800mm
  • Floorboards 28mm, floorjoist 100mm for 80mm celotex insulation
  • Twin roof 100mm void for 80mm celotex insulation
  • Double glazed doors and windows 4-16-4, float, Low E, factory treated and painted, outward opening
  • Safety glass fitted to double door
  • 1 double externall door 1600mm x 2050mm
  • 1 single externall door 960mm x 2050mm
  • 6 internall single doors 860mm 2050mm
  • 4 double windows 1200mm x 1200mm
  • 2 single windows 600mm x 600mm

Please contact us for a bespoke quotation for a mobile home

We build custom designed mobile homes that are perfect replacements for static caravans. By designing the building for your property the static caravan can be replaced with a long-lasting beautiful wooden structure whilst still using the existing planning permission.

Our mobile units are built in two sections, fully complying with mobile unit legislation. Inside the units feel warm and cosy due to the beautiful natural woods we use.

Because we design and build each unit individually we can exactly match the dimensions of your existing caravan, or change the size to maximise your available land.

When treated properly these buildings will last a lifetime.

All of our residential cabins can be constructed to comply with mobile unit legislation.

This short video explains our method of building caravans:

For more information about our mobile homes have a look at our sister company North Coast Log Cabins
